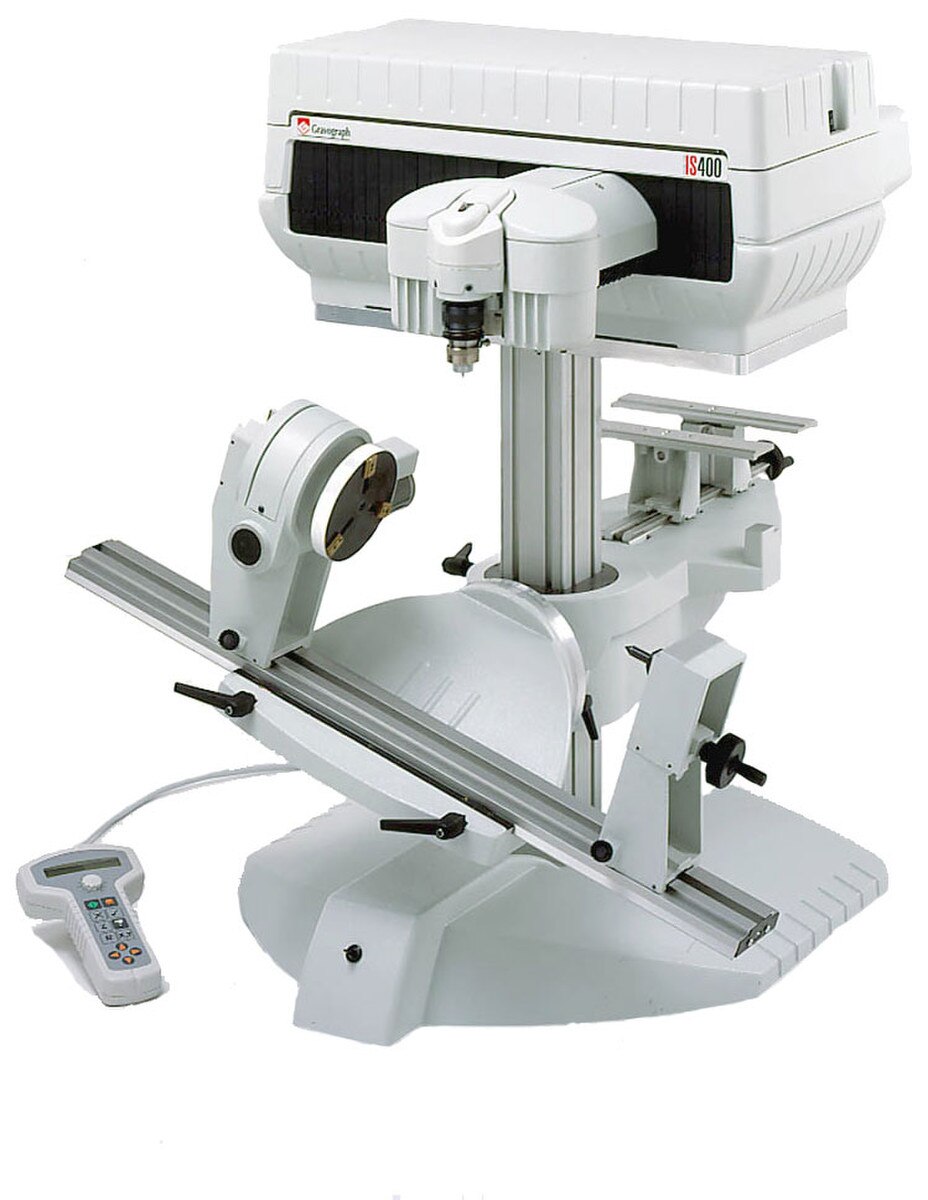

IS400 Volume Engraving Machine

The Gravograph IS400 Volume is a production powerhouse. With the ability to switch from cylindrical objects to flat engraving in seconds the IS400 volume provides the ultimate engraving solution. With over 15" of vertical spindle travel the IS400 volume is capable of handling almost any industrial part or giftware item you can throw at it. With the integrated 4 axis clamping vice the IS400 volume can easily engrave around a cylindrical shaped item with maximum precision.

\r\n
• Multiple positions of central clamping
\r\n
• Motorized clamping system which allows for easy change over from flat to cylindrical objects without changing machine parameters
\r\n
• Adjustable spindle rotation speeds from 11,000 rpm to 20,000 rpm for engraving various materials
\r\n
• Direct current spindle motor is quiet and very powerful
\r\n
• A complete range of spindles and clamping accessories are available to maximize performance. Options include: Heavy Duty T-Slot Table, Collet Spindle, Pen attachment, vacuum table, Large Cone kits.
\r\n

Machine Dimensions 35.4" W x 24.2" L x 33" H
Machine Weight: 198 lbs (255 lbs packaged)
Holding Capacity:
Vice: Ulimited x 9" x 15"
Table: 13" x 10.2"
Cylindrical Vice: Min: 0.75", Max 13.8", Max Weight 44 lbs
