M40 Engraving Machine

Log in to see price
SKU: 53101-G

The Gravotech M40 is a compact 8"x12" engraving table with a host of industry leading features. Machine includes a vice clamp and flat table for easily engraving gifts, signs, name tags and more. Need help? Live chat or call (800)782-1235 to speak with a dedicated representative. Requests for quotes are returned within 24 hours!

Not eligible for free shipping promotion

Back

Details

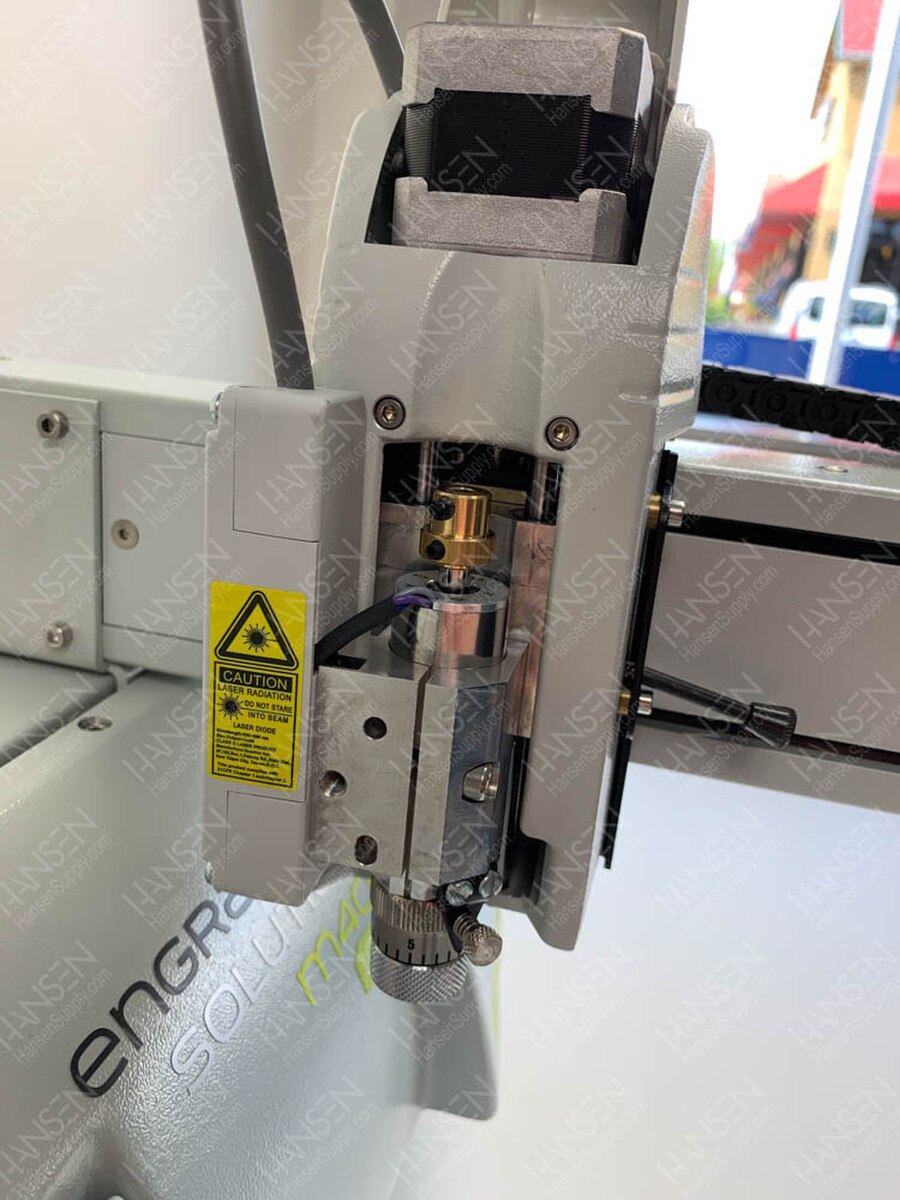

The M40 deep vice engraving machine is an affordably priced, compact engraving system that's easy to use. With the deep vice system and Gravostyle software the Gravotech M40 is a powerful engraving system. The M40 cast construction is designed to facilitate precision and long life for the M40. The M40 includes a direct drive spindle motor with no moving belts and adjustable spindle pressure.

Main features:

  • Small foot print 22" x 20"
  • Light Weight design ( 42lbs with table) for portability

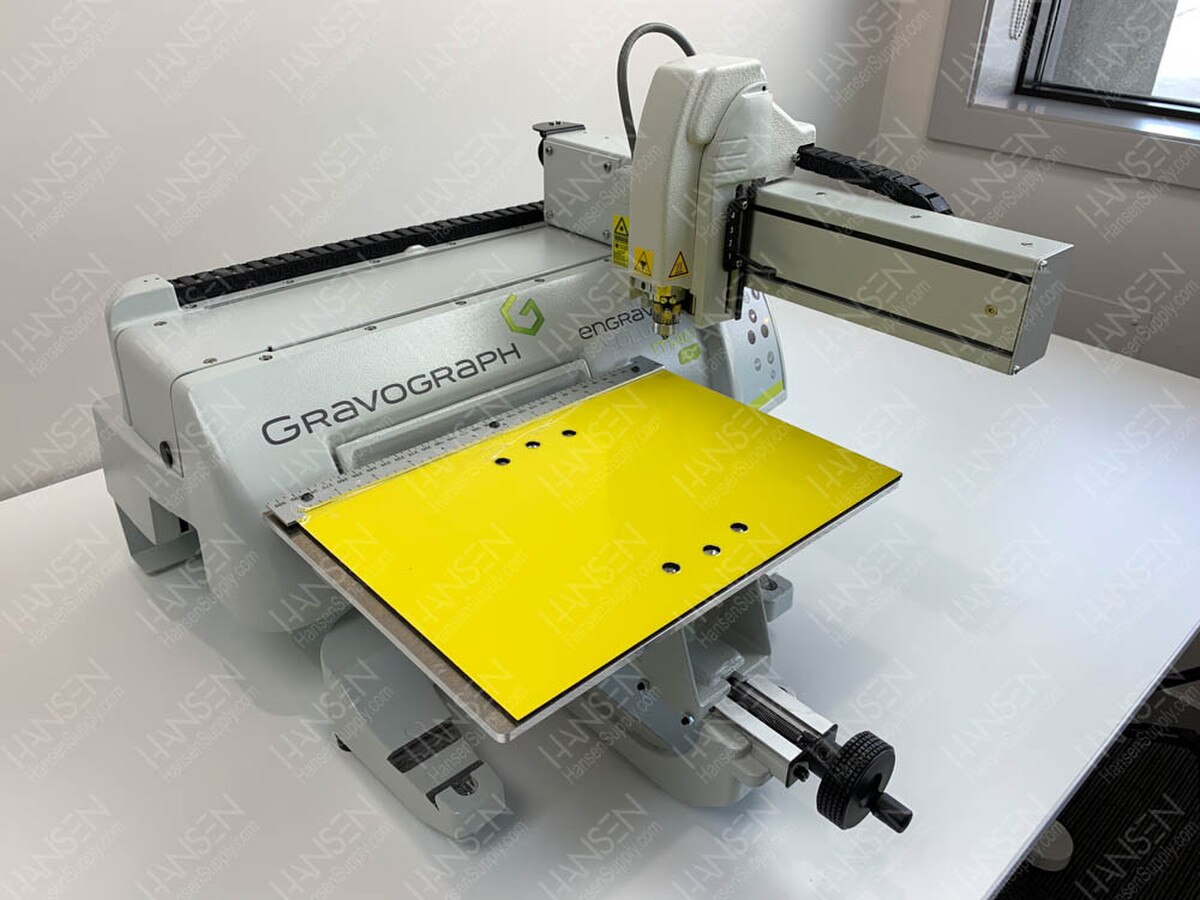

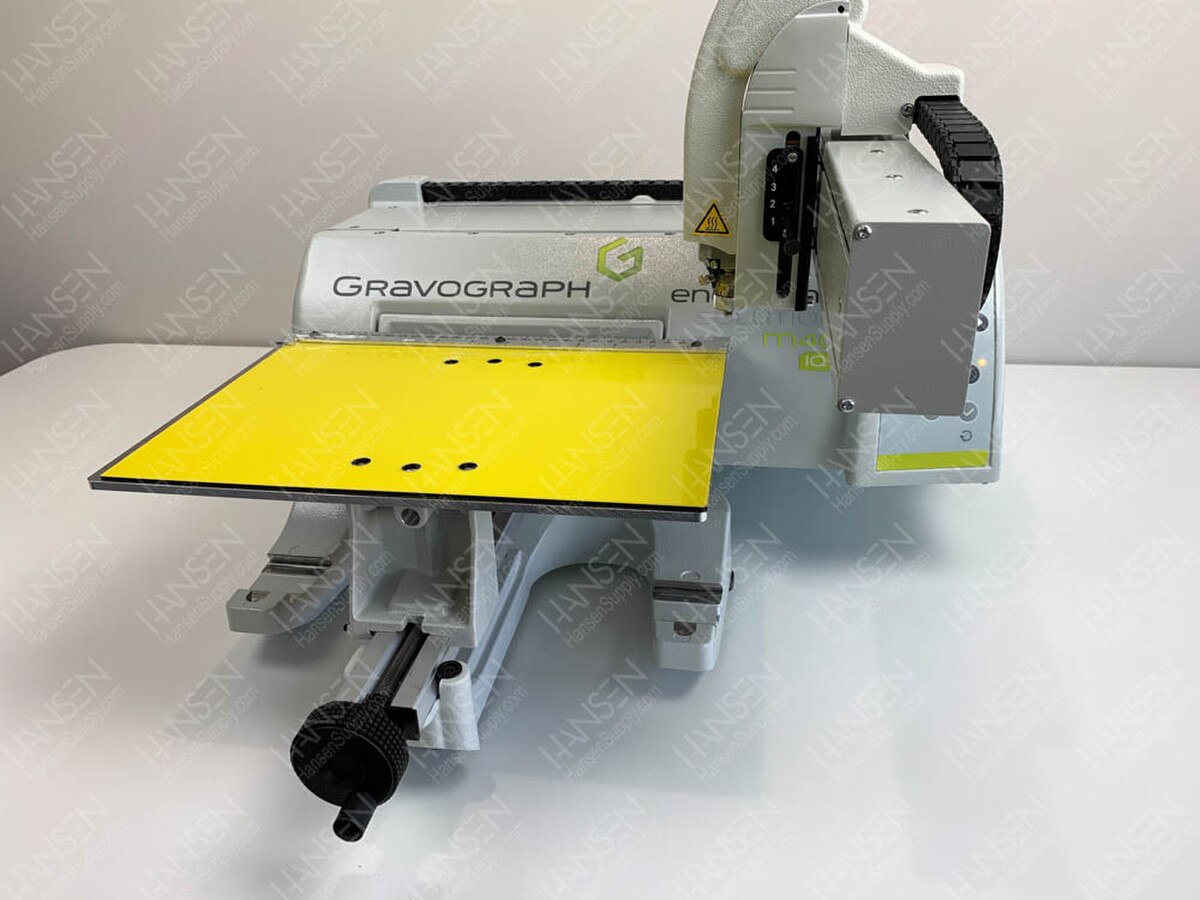

  • 12" x 8" Engraving table

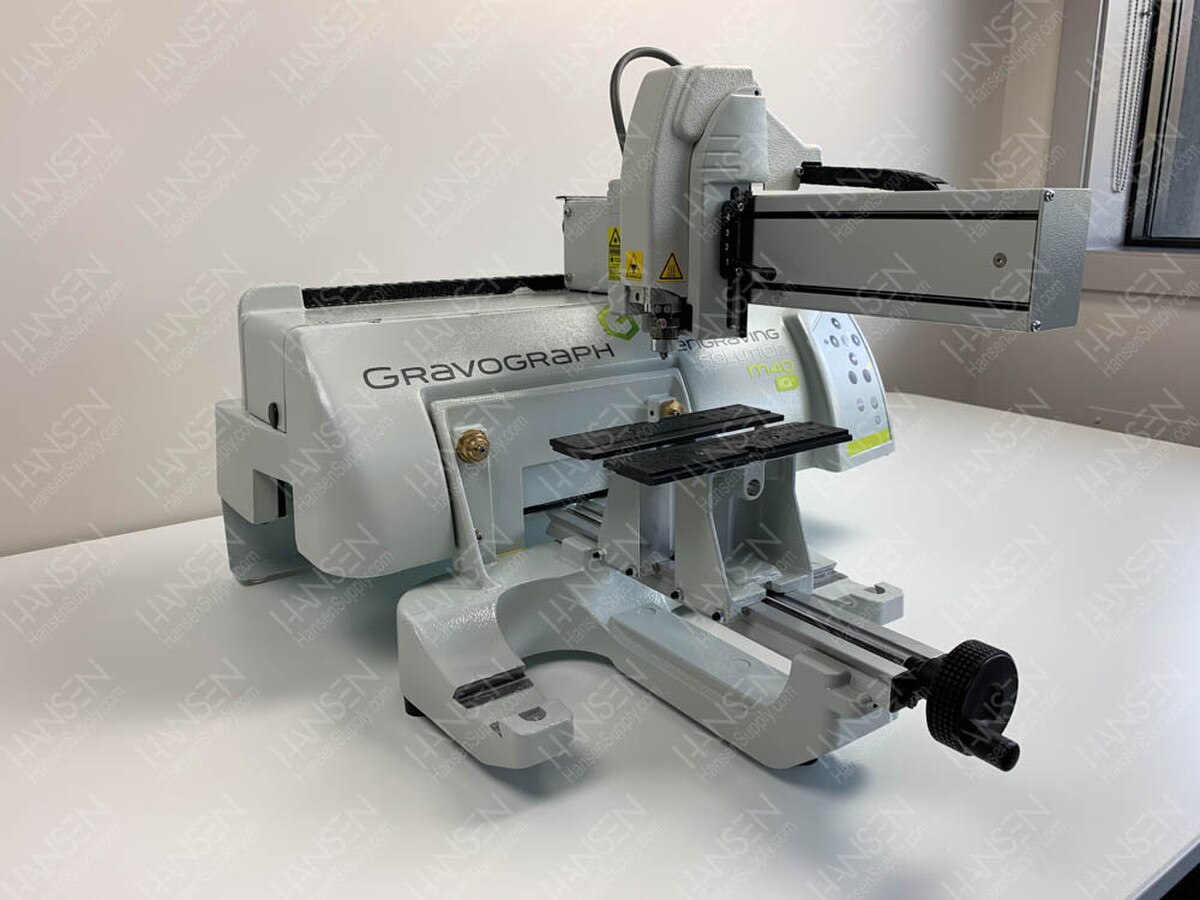

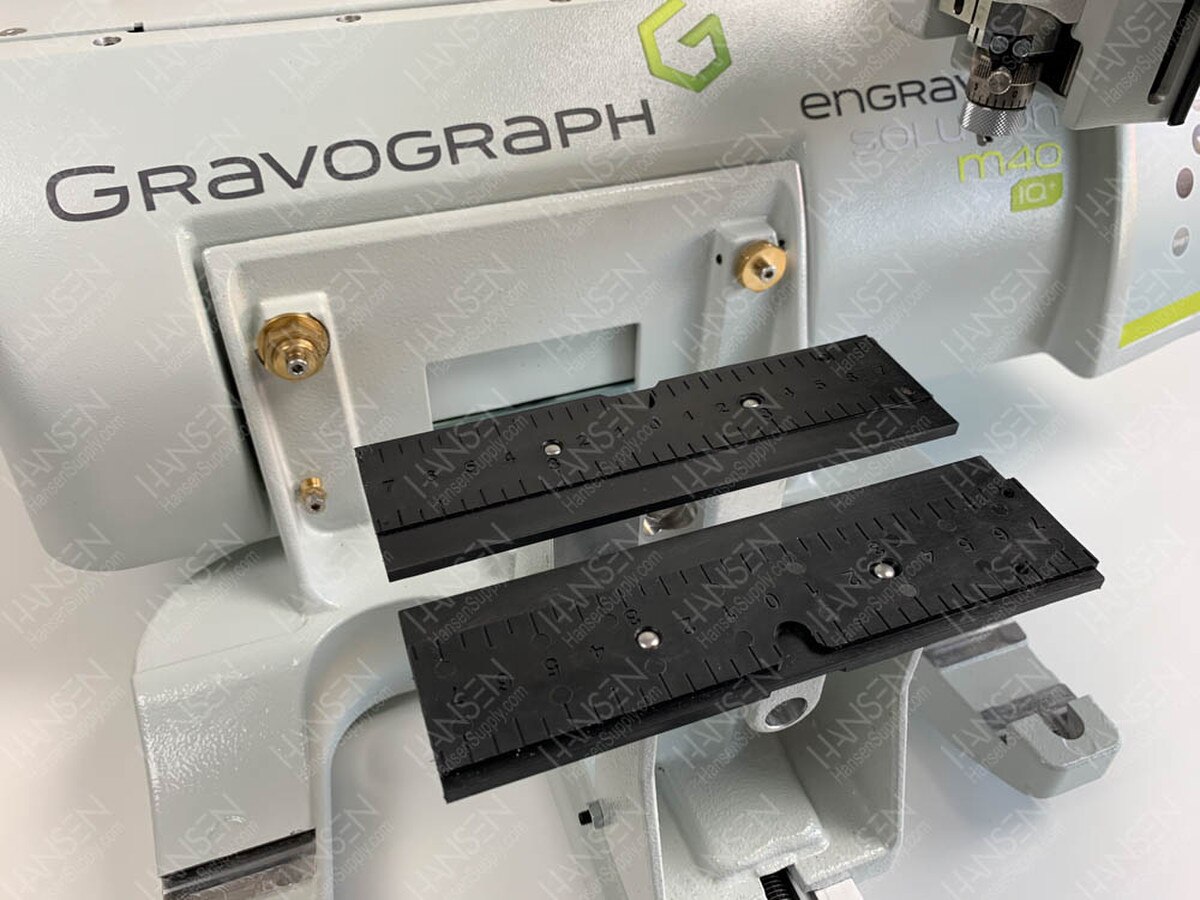

  • 4.5" deep self-centering vice clamp
  • 11/64" Full size engraving spindle
  • 1.57" Machine engraving clearance
  • Integrated laser pointer for error free engraving

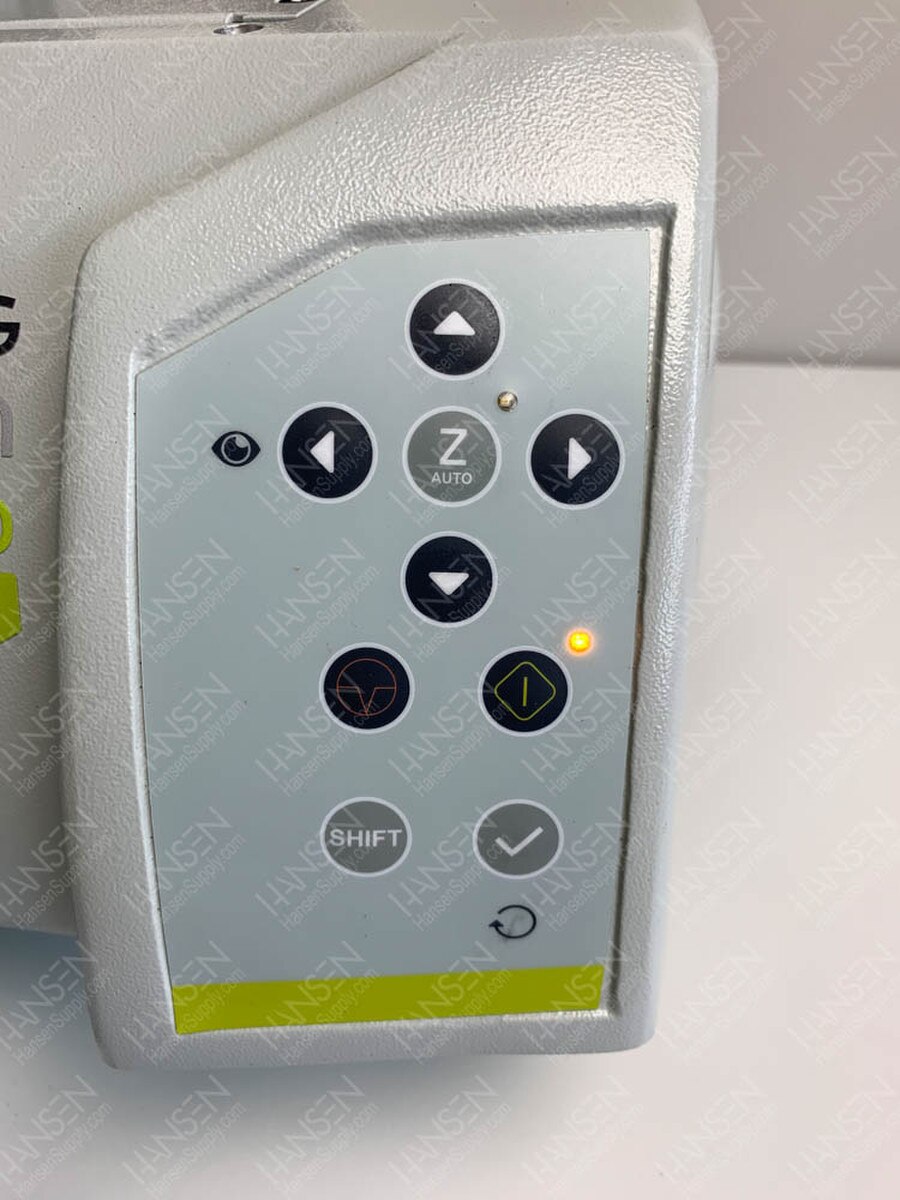

  • Automatic Z reference for effortless cutter setup
