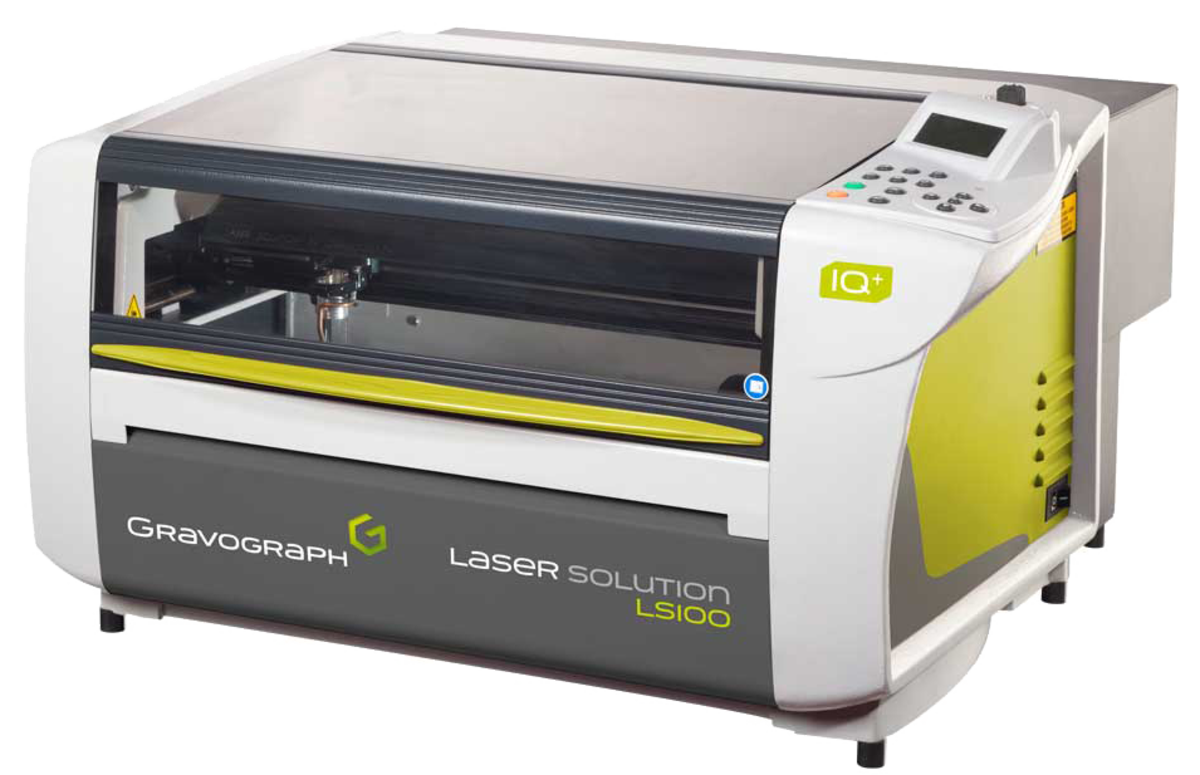

LS100 40W CO2 Laser 12"x18"

Laser System Features

• Speed: 100 inches per second raster speed on LS100 series lasers for increased production
• Engrave items up to 12” x 18” and up to 5.8” tall
• Laser source ‐ rated @ 60,000 hours MTBF (Mean Time Between Failure) which is a measure of reliability. It is the average time during which the system performs to specification between failures. It is not a measure of product lifetime since failures can usually be corrected
• Saves expense of replacement sources
• Less down time, with fewer change‐outs
• Power: from 30W to 60W

Ergonomic design

• Lift the cover and the work table is right in front of you for easy loading and unloading
• Illuminated keypad buttons for operation in low light conditions
• Interactive LCD display for setting default operating state & job control
• Illuminated interior for easy viewing
• End of job audible alarm
• Job timer
• Can operate from a chair


Quality construction for maintaining accuracy and a long life

• Cast aluminum frame is built for production
• 2 year warranty (12 months on site parts, labor & travel (Silver)+ 12 months parts & phone support (Bronze) excluding optics which are 12 months). Onsite service by GravotechTechnicians. Extended warranties available.
• 3 lead screws control platform up/down movement for smooth and stable operation
• Maintains consistent focal distance, and, therefore power delivered, across entire engraving area
• Wide heavy‐duty belts for long life minimizes down time and cost
• Mirrors and lenses easy to access for quick cleaning
• Direct drive on Y‐axis – no belt to wear out
• Easy cleaning and changing of lenses
• Rust‐free stainless steel fasteners
• T‐slot table surface facilitates custom fixturing
• Supports objects up to 33 lbs


Point & Shoot with red spotting beam for quick and easy job set up

• Point and shoot layout makes job layout simple
• Reduces time required to set up difficult to engrave jobs
• Verifies engraving location with red beam minimizing errors & material waste
• Laser package includes LaserStyle Graphic engraving software designed for lasers
• Powerful and versatile color control bar configures engraving modes & lasering parameters
• Easy and efficient matrix layouts
• Barcode reading capabilities
• PhotoLase photo‐processing module
• Rubber stamp processing module
• Saves power and speed settings with job files for fast and efficient job retrieval


Laser drivers

• Includes a standard Windows driver for 3rd‐party software such as CorelDraw & Illustrator
• LaserStyle application software integrates the driver into an easy to use Lasering dialog:
• Direct interface to the machine. No cumbersome series of Windows dialogs to go through
