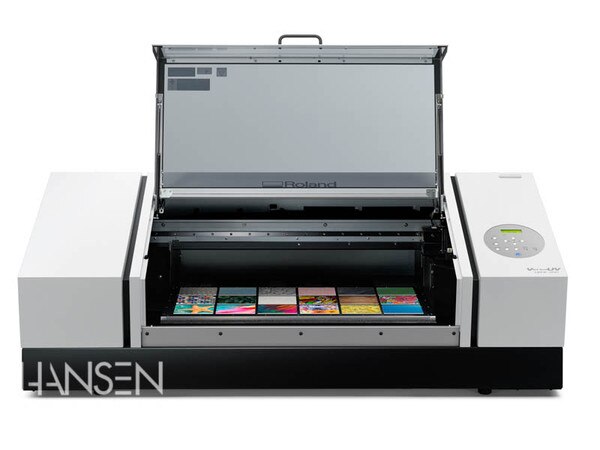

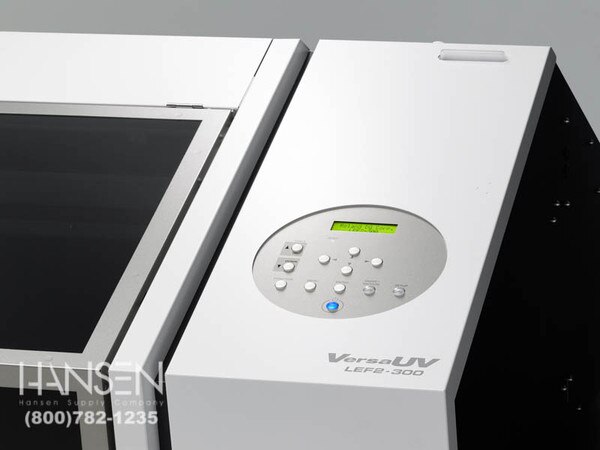

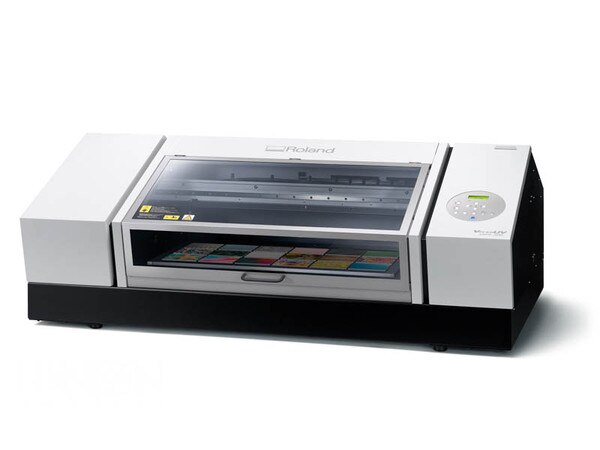

LEF2-300 UV Flatbed Printer
Details

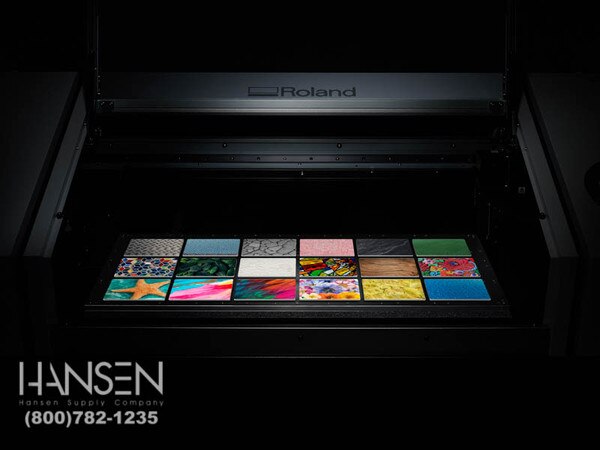

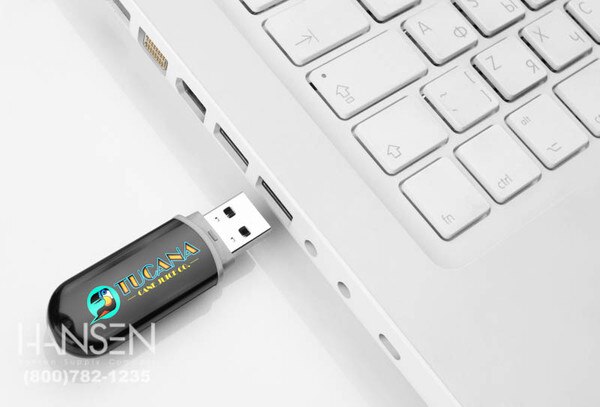

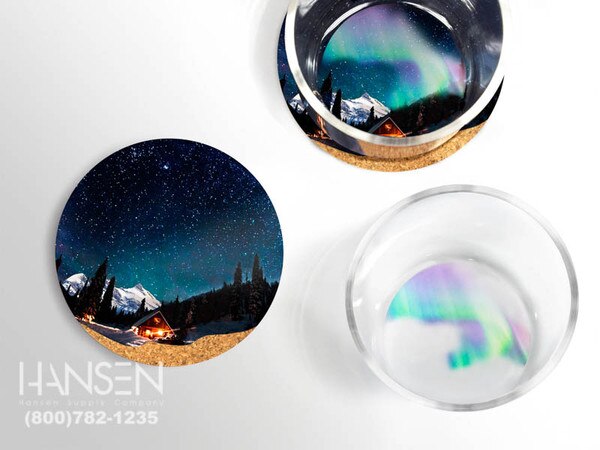

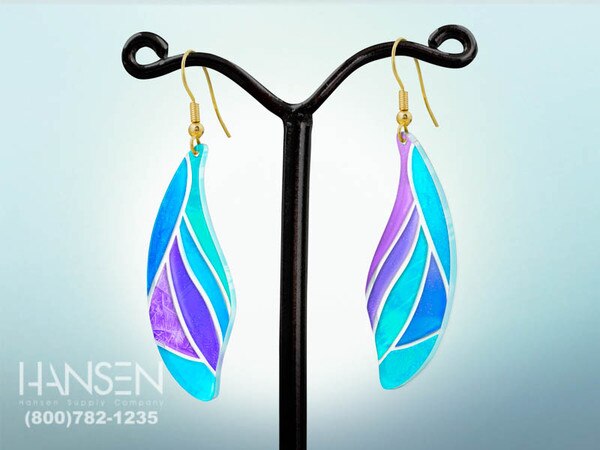

The Roland LEF2-300 is a 30" wide UV flatbed with exceptional capabilities. Print directly to substrates, promotional items, laptops, giftware, signs, phone cases, awards and more.
Advanced ECO-UV inks
Roland inks are flexible enough to conform to most complex corners allowing for customization of everything from gifts to industrial parts.
Create Textures and Embossing with Clear Roland Ink
With high density white ink and clear ink for gloss and matte finishes the Roland LEF2-300 printer can produce stunning effects. Multiple layers clear ink can provide 3D textures and embossing like effects with 72 built in texture patterns in VersaWorks Dual software.
Built for High-Volume Demand

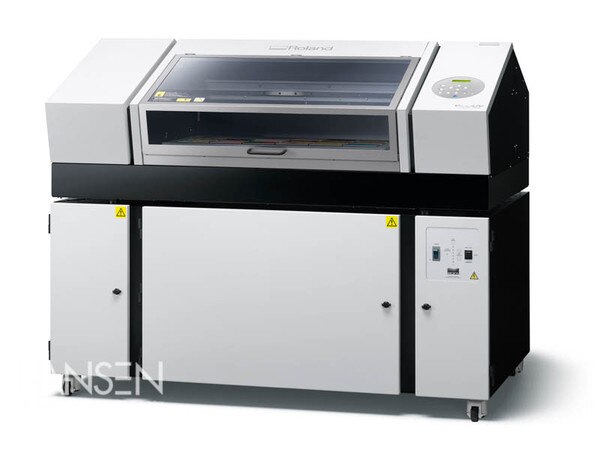

To maintain accurate performance during long production runs the Roland LEF2-300 incorporates precision parts that are not susceptible to changes in temperature or humidity. The LEF2-300 also includes a built in BOFA filter and enclosed cabinet for dust free and mist free printing. To meet the needs of manufacturing facilities the LEF2-300 includes an input/output systems allowing control of external devices.
| Printing technology | Piezoelectric inkjet | |
| Dimensions | Max. 31.5 (width) x 14.2 (length) x 3.94 (height) in. Max. 800 (width) x 360 (length) x 100 (height) mm | |
| Weight | Max. 18 lbs. Max. 8 kg | |
| Printing width and length | Max. 30.3 (width) ?ù 13 (length) in. Max. 770 (width) x 330 (length) mm | |

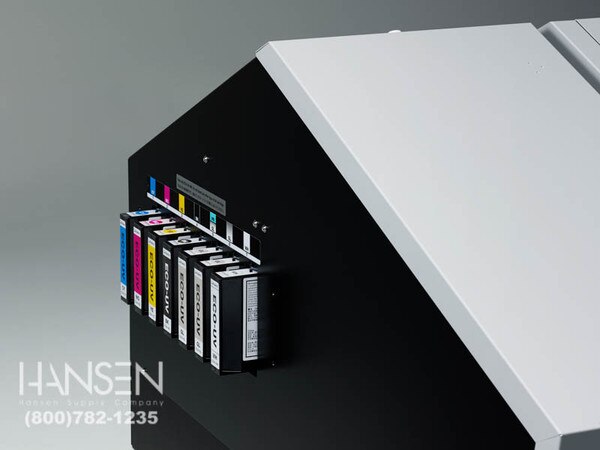

| Type and capacity | ECO-UV 220 cc cartridge, ECO-UV 500 cc cartridge (White ink is not available in 500 cc cartridges) | |
| Colors | 6 colors (cyan, magenta, yellow, black, white, and gloss) | |
| Print resolution (dpi) | Max. 1,440 dpi | |
| Distance accuracy * | Error of less than ??0.3 mm (??11.8 mil) or ??0.3% of the specified distance, whichever is greater | |
| Dryer *4 | Error of less than ??0.2 mm (??7.9 mil) or ??0.1% of the specified distance, whichever is greater | |
| Connectivity | Ethernet (10BASE-T/100BASE-TX, automatic switching) | |
| Power-saving function | Automatic sleep feature | |
| Power requirements | AC 100 to 240 V ?? 10%, 2.1 A, 50/60 Hz | |
| During operation | Approx. 178 W | |
| Sleep mode | Approx. 18 W | |
| During operation | 60 dB (A) or less | |
| During standby | 49 dB (A) or less | |
| Dimensions | 61.4 (width) ?ù 37.6 (depth) ?ù 22.7 (height) in. (1,560 (width) ?ù 955 (depth) ?ù 576 (height) mm) (When the ink-cartridge tray is attached; 73.5 ?ù 37.6 ?ù 22.7 in. (1,866 ?ù 955 ?ù 576 mm) | |
| Weight | 317.5 lbs. (144 kg) | |
| Power on | Temperature: 20 to 32??C (68 to 90??F) (22??C [72??F] or higher recommended), Humidity: 35 to 80% RH (non-condensing) | |
| Power off | Temperature: 5 to 40??C (41 to 104??F), Humidity: 20 to 80% RH (non-condensing) | |
| Included items | Power cord, BOFA Filtration System, RIP PRINT MANAGEMENT SOFTWARE (Roland VersaWorks Dual), User's Manual and Pad trays, etc. | |
| Roland Versa Works System Requirements | ||
| Operating system | Windows?« 10 (32/64-bit) Windows?« 8/8.1 (32/64-bit) | |
| CPU | Intel?« Core?äó2 Duo, 2.0 GHz or faster recommended | |
| RAM | 2 GB or more recommended | |
| Video card and monitor | A resolution of 1,280 x 1,204 or more recommended | |
| Free hard-disk space | 40 GB or more recommended | |
| Hard-disk file system | NTFS format | |
| Optical drive | DVD-ROM drive | |
